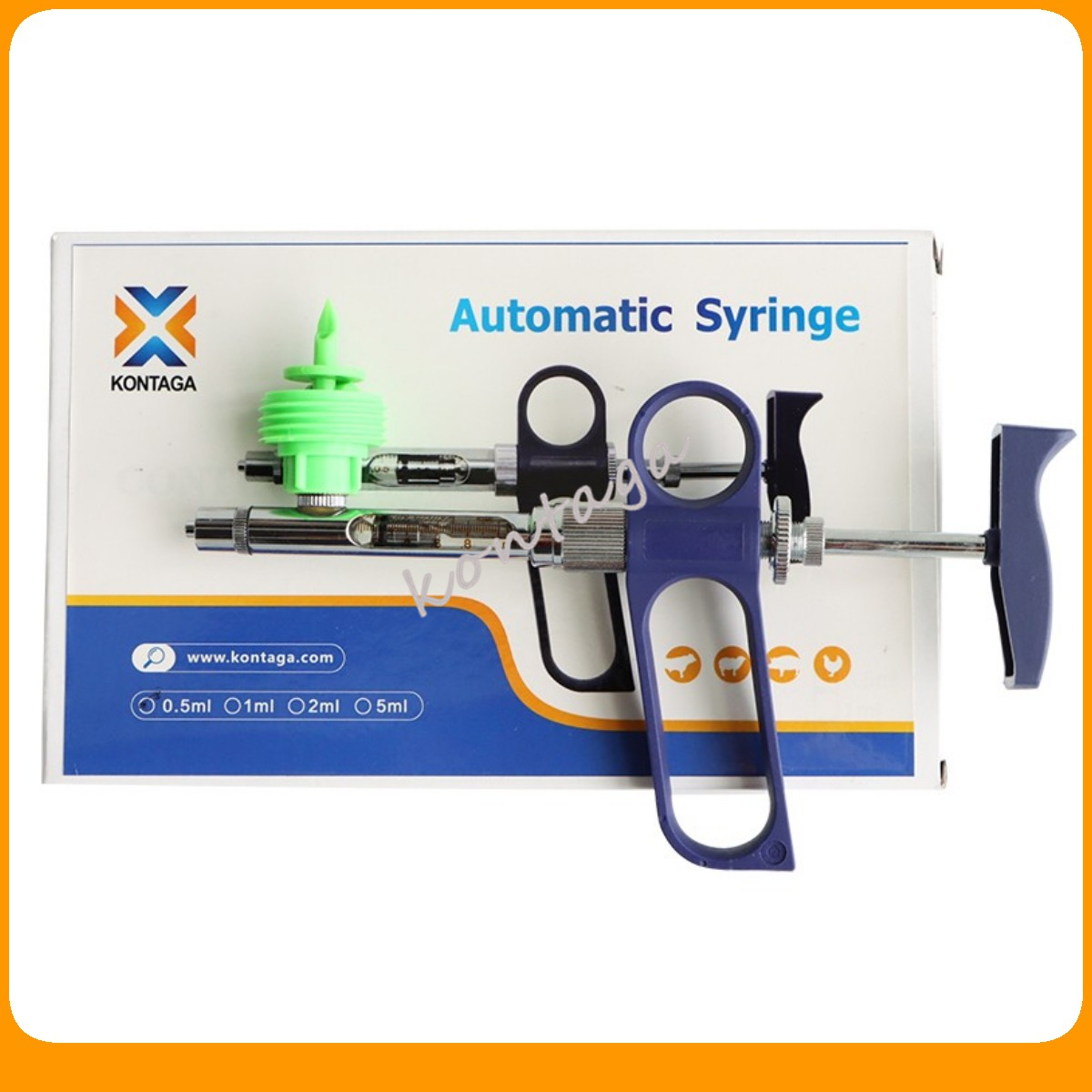

KTG014 Continuous Syringe

Short Description:

1. Specification: 0.5ml, 1ml, 2ml, 5ml.

2. Material: Brass with electroplating, the material for handle: Plastic

3. The accuracy is:

1ml: 0.02-1ml continuous and adjustable

2ml: 0.1-2ml continuous and adjustable 5ml: 0.2-5ml continuous and adjustable

4. Luer-lock , Metal piston

5. Easy of operation 6. Features: with 200 ml Large & 100 ml Small Draw-off for directly inserting the liquid bottle to the fixed position, avoid secondary liquid pollution by straightly injection. liquid bottle is placed at a specific angle for stable holding

Send email to us

Product Detail

Product Tags

Overview

This product is a veterinary syringe for animals’ small dose injecting treatment. Especially be suit for epidemic prevention for small animal, poultry and livestock
1. The structure is precession and the fluid absorption is perfect
2. The measurement is accurate
3. The design is reasonable and it is easy to use
4. It is easy to operate and the hand feel is comfortable
5. The body can be boiled disinfection
6. This product is equipped with spare parts

Main Performance

1. Spec: 5ml
2. Measurement accuracy: full size difference is no more than ±5%
3. The dose of injecting and drenching: continuously adjustable from 0.2ml to 5ml

Operating Method

1. It should be cleaning and boiling disinfection before to use it. The needle tube should be exited from the piston. High-pressure steam sterilization is strictly prohibited.
2. It should be checked before use to ensure that each part is installed correctly and tighten the connecting thread
3. Dose measurement: Release the does fixed nut (NO.16) and rotate the adjusting nut (NO.18) to the required dose value and then tighten the dose nut (NO.16).
4. Injecting: First, insert and fastened in the inserting bottle, then push the pushing handle ( NO.21) continuously. Second, push and pull the handle to remove the air until you have got the required liquid.
5. If it can’t suck the liquid, please check the syringe that all part components are not damaged, the installment is correct, the connecting thread is tightened. Ensure that the spool valve is clearly.
6. It should be removing, drying cleaning and put into the box after using.
7. If it can’t suck the liquid, please check the syringe as follows: a. Check all part components are not damaged, the installment is correct, the connecting thread is tightened. Ensure that the spool value is clearly.
b. If it still can’t suck the liquid after you operate as the above, you may do like this: Sucking a mount of liquid in injection part, then push and pull the handle (NO.21) until the liquid is sucked.

Attachment

1. Operation Instruction…………………………………………1 copy
2. Glass tube with Piston………………………………….…….1 set
3. Spool Valve……………………………………………..……2 pieces
4. Flange Gasket………………………………………………...1 piece
5. Cap Gasket…………………………………………………...1 piece
6. Sealed Ring……………………………………………....…..2 pieces
7. O-ring Piston…………………………………………………1 piece
8. Certificate of Approval…………………………………….….1.copy
