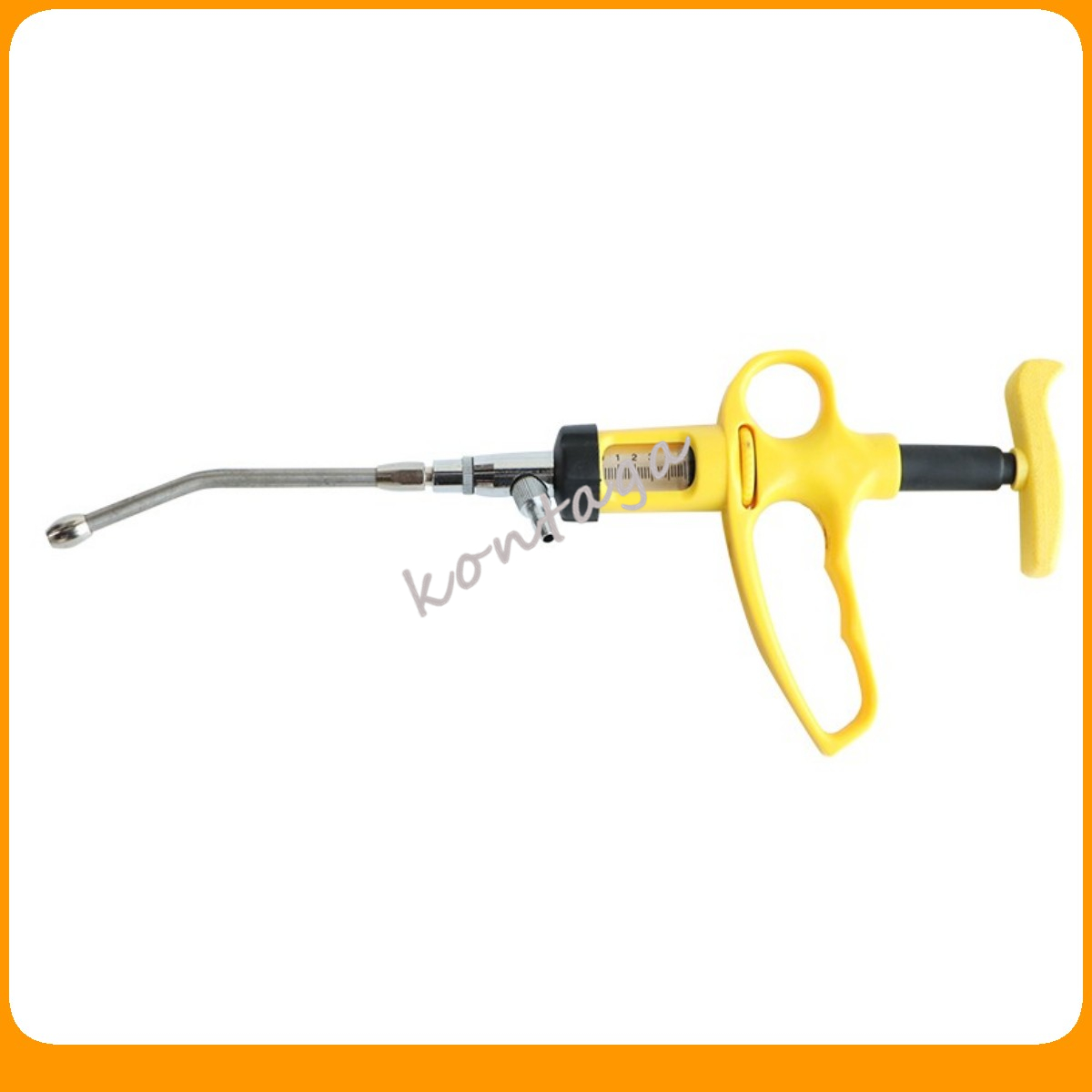

KTG019 Continuous Syringe
Overview
This product is a veterinary syringe for animals’ treatment, epidemic prevention.
1. The structure is precession and the fluid absorption is perfect
2. The design is reasonable, the structure is novel, and it is easy to use
3. The measurement is accurate
4. It is easy to operate and the hand feel is comfortable
This product is equipped with spare parts, and provide good service.
Main Performance
1. Spec: 5ml
2. Measurement accuracy: capacity error is not more than ±3%
3. The dose of injecting: continuous adjustable from 0.2ml to 5ml
Operating Method
1. It should be cleaning and boiling disinfection before to use it. The needle tube should be exited from the piston. High-pressure steam sterilization is strictly prohibited.
2. It should be checked before use to ensure that each part is installed correctly and tighten the connecting thread.
3. Dose measurement: Rotate the regulating nut(NO.21)to the required dose value.
4. Injection: Firstly, put the fluid-suction part on the medicine solution bottle, then push and pull the handle (NO.18) to remove the air until you have got the required liquid.
5. If it can’t suck the liquid, please according to the means to check :
a. First, check all the parts are not damaged, the installment is correct, the connecting thread is tightened and not leaked, valve core is not have tiny things. If these situation happened, you can according to the picture shows and specification to anew remove and adjust it.
b. If it is still can’t suck the liquid after you operate as the above, you may do like this: Use flange joint(NO.3) to suck a certain liquid(such as 2ml), then push and pull the handle(NO.18) continuously until the liquid is sucked.

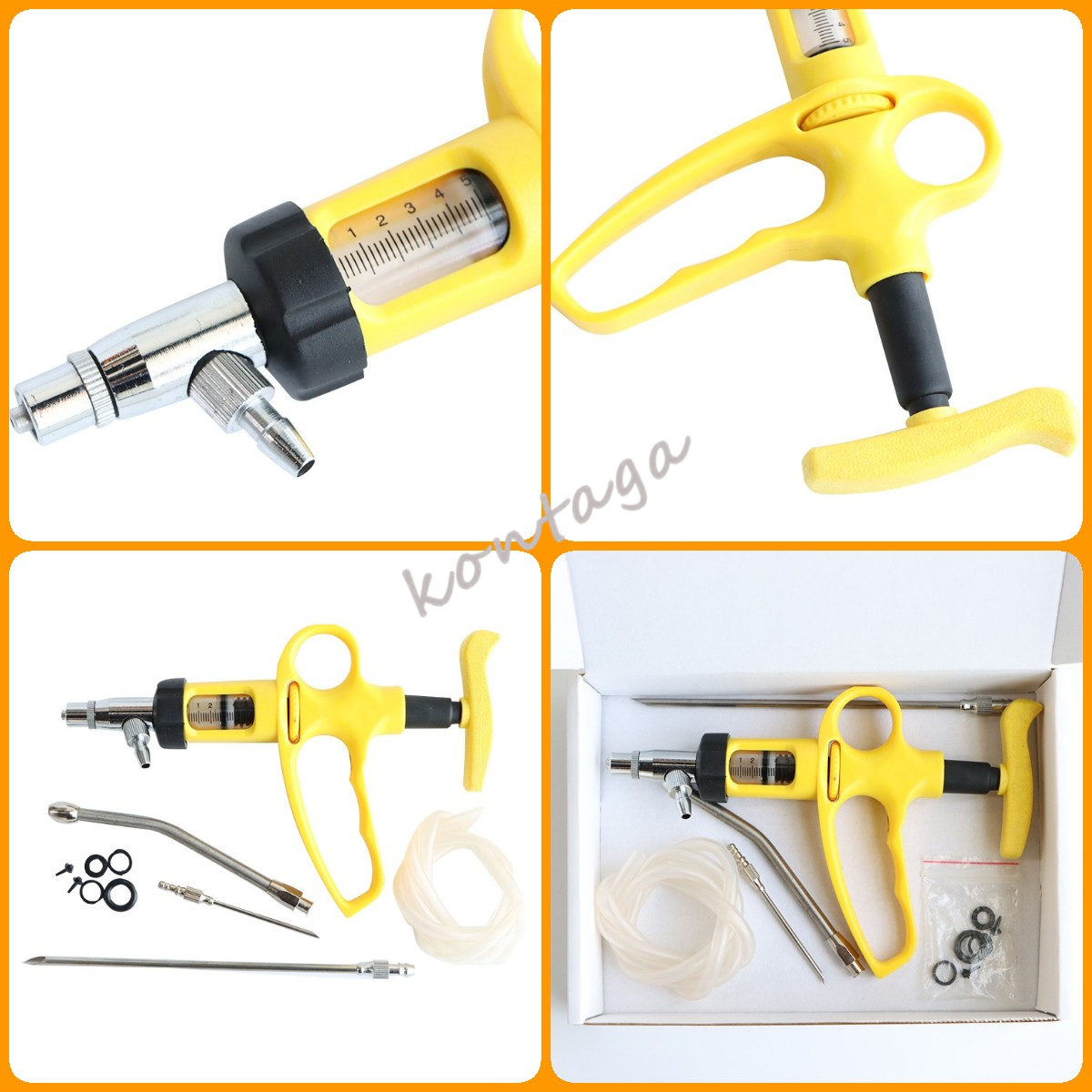

Attachment
1. Operation Instruction…………………..1 copy
2. Aspirating Needle…………………...........1 pc
3. Return-air Needle……………………....1 pc
4. Aspirating Liquid Tube…………….…..1 pc
5. Sealed Ring…………………………......1 pc
6. Sealed Ring of Pistion………………… .2 pc
7. Needle Gasket …………….....................1 pc
8. Valve Core……………...........................1 pc
9. Joint Gasket…………………………….1 pc
