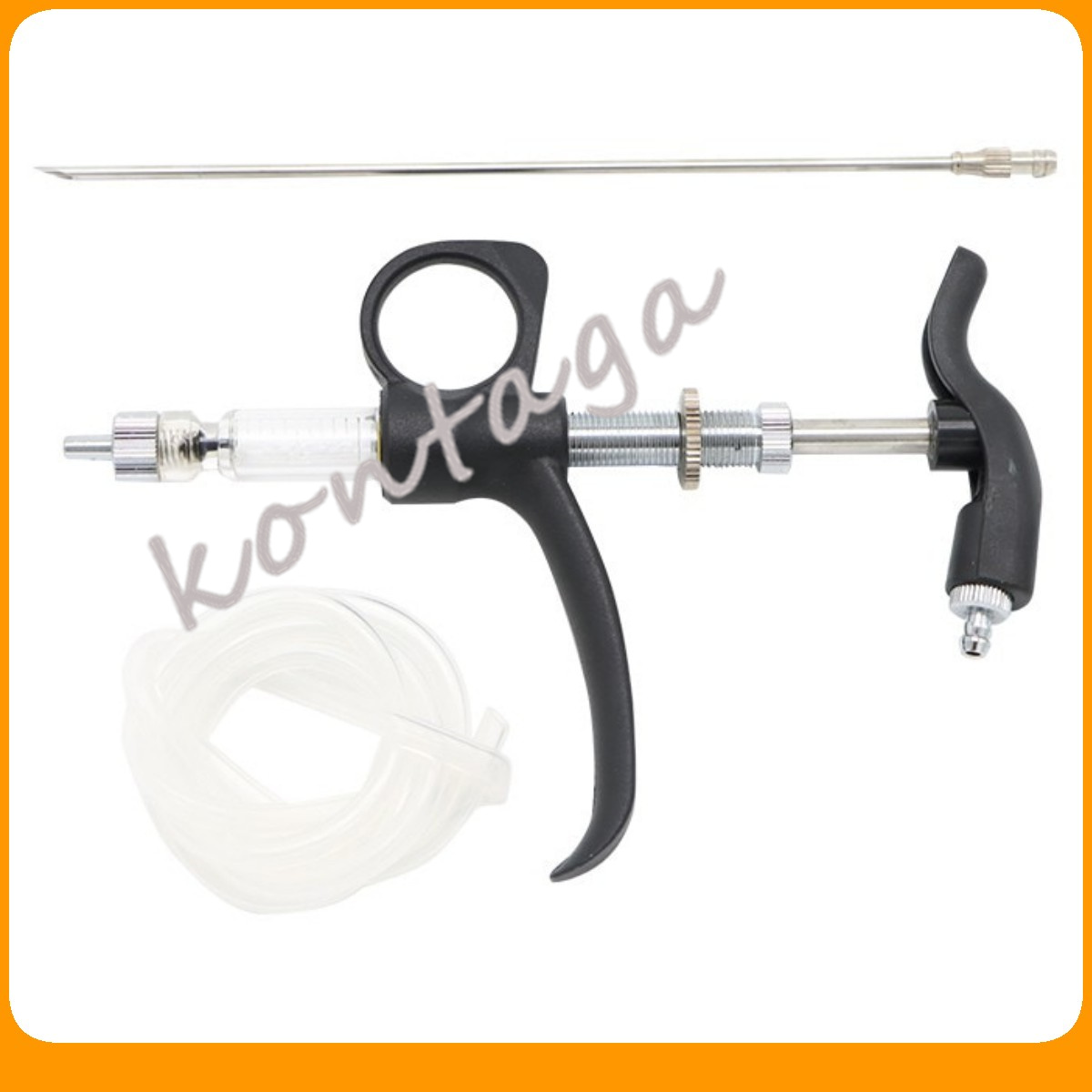

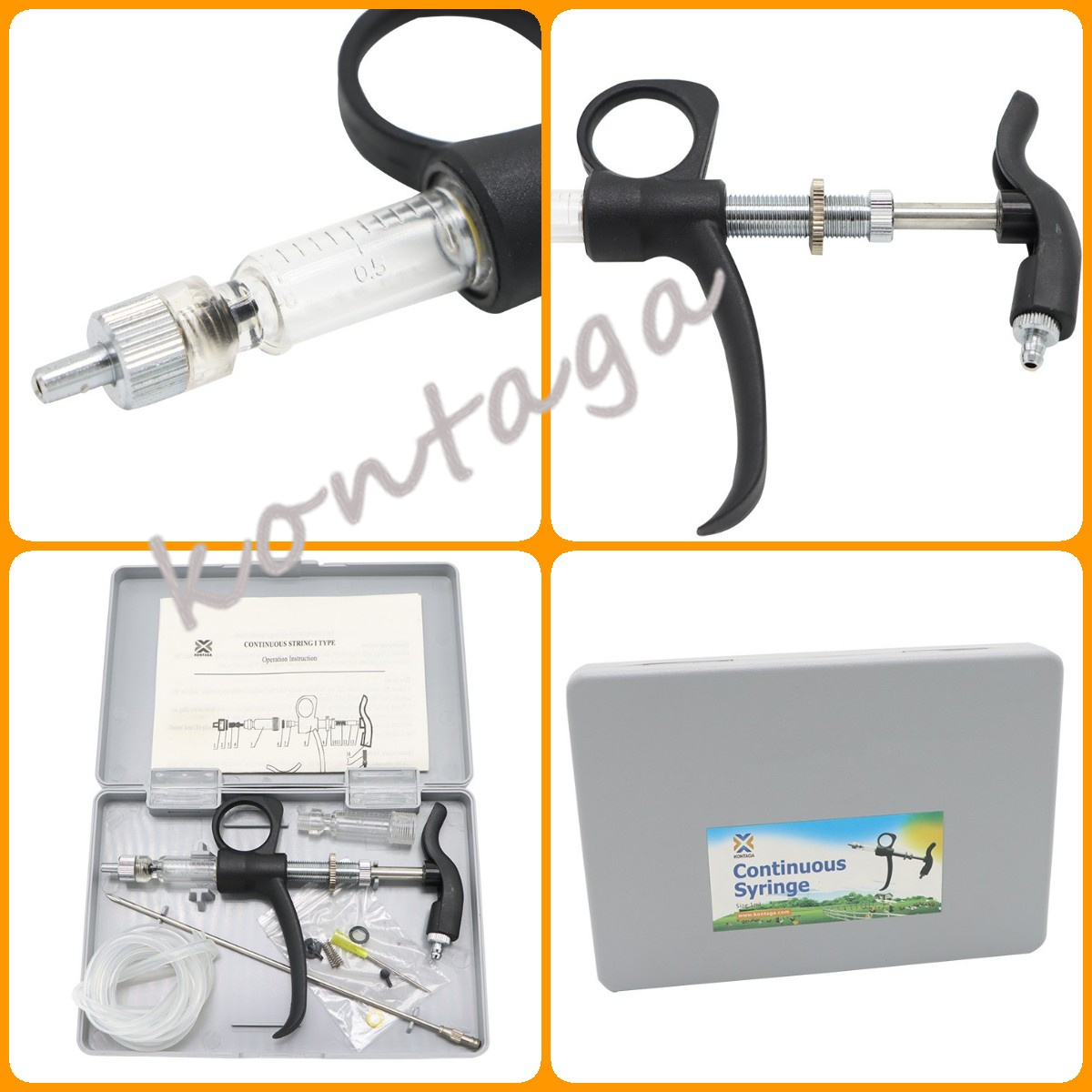

KTG012 1ml Continuous Syringe

1ml continuous syringe instruction

Disinfection Method

Fill the syringe with water before use, put it in water and boil for 10 minutes Clock (do not touch the bottom of the pot), take out the water in the syringe, and keep it dry Water, ready to use.

How To Use

1. Insert the suction needle and the deflation needle into the medicine bottle respectively, and use the catheter (16) suction needle (17) connector (15)
2. Rotate the Adjustment line (10) to the position of 0-1ml (engraved and live the end faces of the plug are aligned) continuously push the push handle (14) until the liquid medicine is full, then
Adjust to the position of the dose you need, put the fixing nut (9) close to Tighten the handle (8) and install the needle to use.

Maintenance Method

1. After the continuous injector is used up, disassemble all parts for thorough cleaning to Free drug residues.
2. Coat the steering valve and "O" ring with medical silicone oil and wipe dry Place the components in the box after assembly and store in a dry place.

Matters Needing Attention

1. If the syringe is placed for a long time, it may not suck the medicine.
This is not a quality problem, but because the residual liquid suction valve (15) and The connector (15) are glued together, just use a clean thin object from the connector (15) The suction valve (15) and the connector (15) can be opened slightly through the small hole. Such as
If the medicine is still not inhaled, the steering valve (4) may stick to the cavity (5) or If there is dirt on the steering valve and suction valve port, it is necessary to disassemble the steering valve or The suction valve can be cleaned.
2. After the syringe is used for a long time, the piston may return slowly.
apply a little vegetable oil on the inner wall of the cavity or on the "O" ring, It can also be replaced with a new "O" ring.
2. When cleaning or replacing accessories, all seals need to be tightened to avoid Leakage.
